1953 Panhead

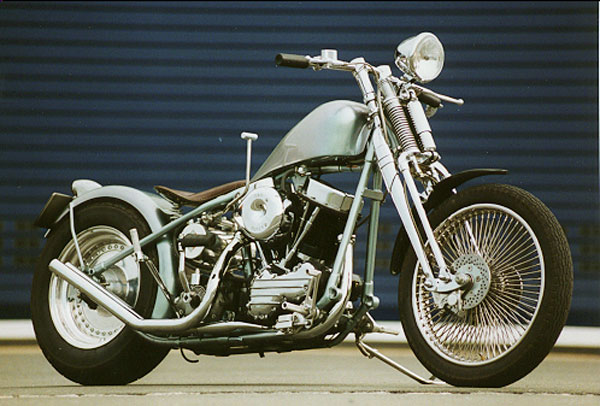

This Harley Davidson Custom Bike was built by SSCycle together with the owner. A lot of our own part were used.



SSCycle Custom Bike SSCycle Custom Bike SSCycle Custom Bike SSCycle Custom Bike SSCycle Custom Bike SSCycle Custom Bike SSCycle Custom Bike SSCycle Custom Bike SSCycle Custom Bike

Tech Spec

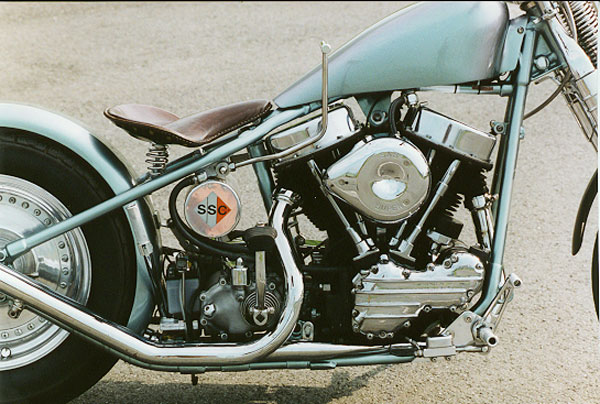

Motor Panhead MFY 1965
Carburetor S&S Super E
Aircleaner S&S Teardrop
Ignition Dyna “S” Dualfire
Exhaust Stainless steel diam. 48mm
Transmission 4 speed Ratchet top, Stock HD, overhauled by SSCycle
Control Jockey shift, right side

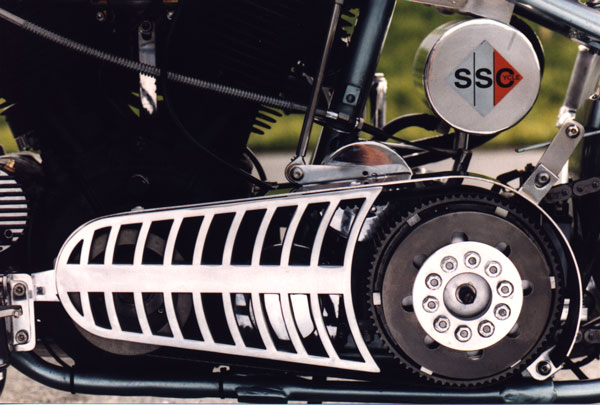

Primary Primo 3"
Clutch HD Stock
Secundary O-ring chain
Frame Rigid frame MFY 1953
Rake 34°
Stretch Stock

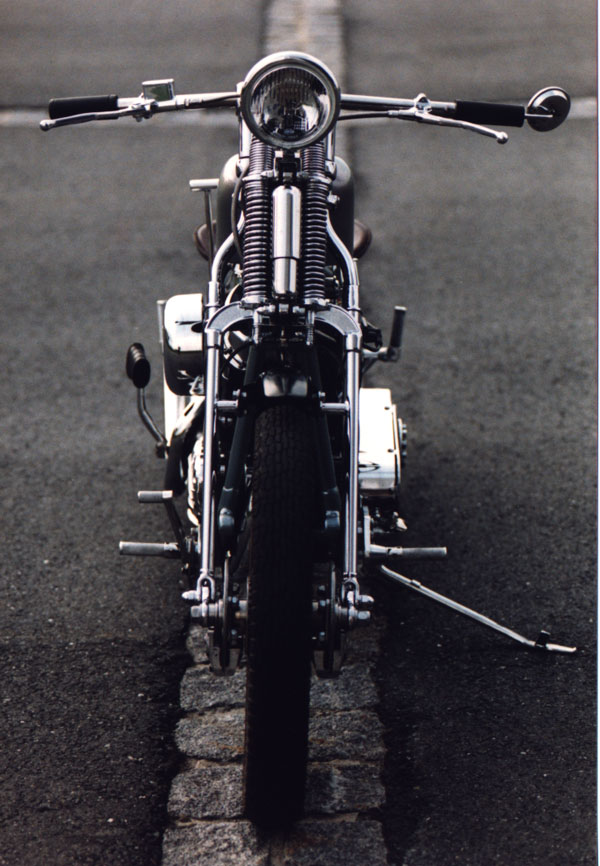

Fork Softail Springer
Front wheel 2.15x19" SSCycle Special 120 spokes, radial
Front tire 3.00x19" Bridgestone

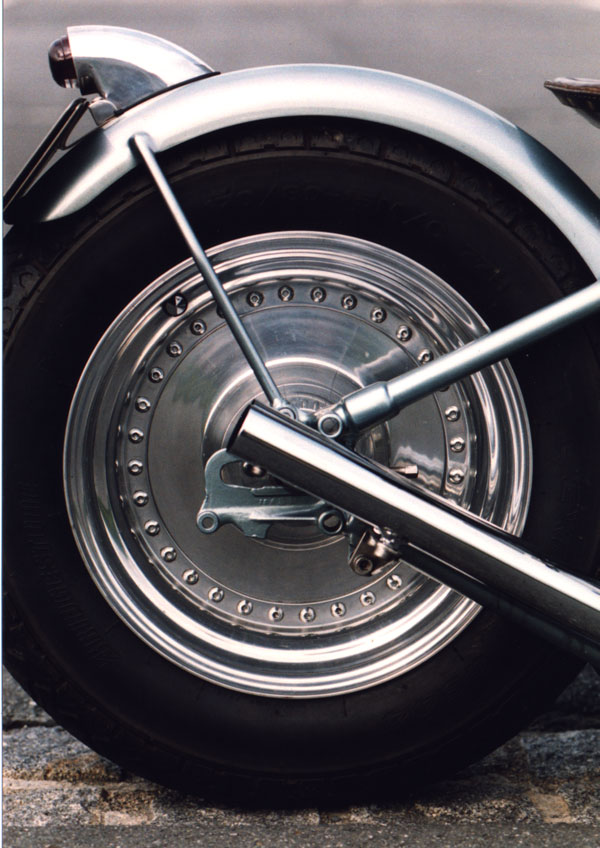

Rear wheel 6.00x15" Disc wheel SSCycle Special
Rear tire 170/80-15" Bridgestone
Front brake disc 2x SSCycle Mini  170mm
Front caliper 2x SSCycle Mini 28mm

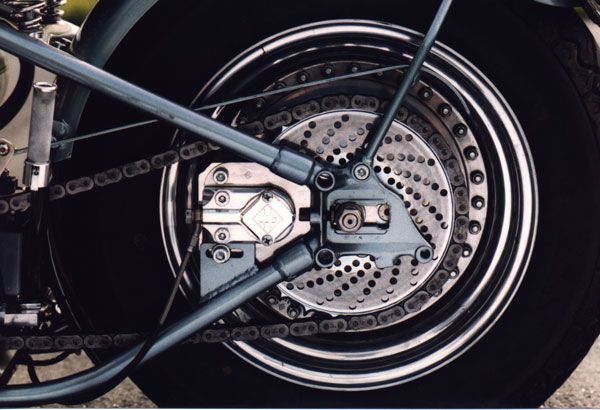

Rear brake SSCycle Sprocket brake
Brake lines  Goodridge, stainless steel
Handlebar SSCycle 1"
Risers Softail OEM
Grips HD Stock
Controls SSCycle Mini

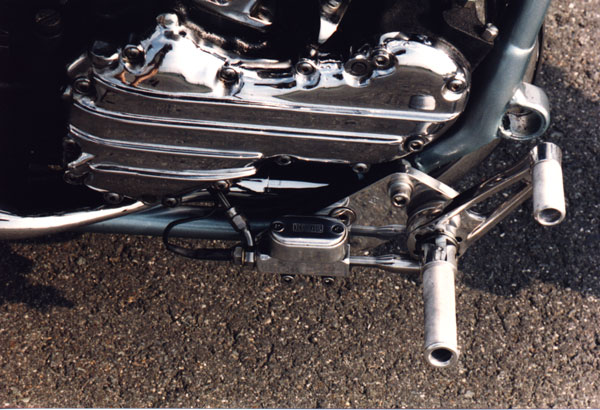

Foot rests SSCycle Mini Rastenanlage

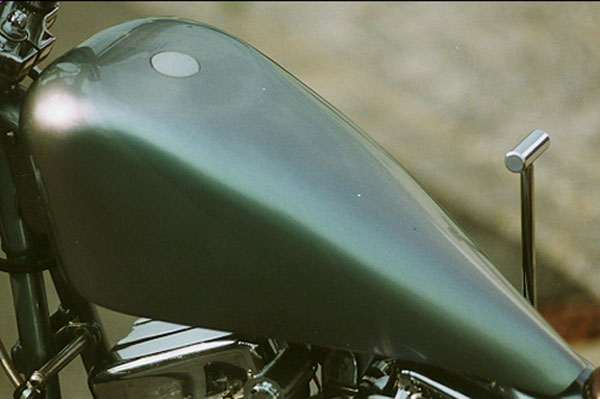

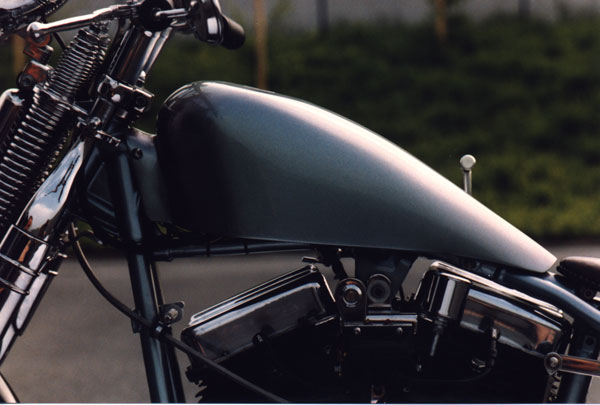

Gas tank Sporty modified bySSCycle with Pop-Up cover
Seat SSCycle oldstyle
Oil tank SSCycle
Fenders SSCycle Flatfender
Headlight 5 3/4"
Rear light Sparto
Wiring SSCycle
Painting Idea Dietmar Mendle
Paint shop Richter Hof
Color FIRE & ICE
